Moticam X

We live in an age where iPads and cell phones are part of the everyday fabric of high school life. With this being the case, Swift Optical’s Moticam X has a great deal of promise as a scientific instrument that can connect a classroom microscope to a variety of portable technologies. As an added bonus, the Moticam X allows you to stretch your science budget by putting students’ personal devices to use instead of investing in a classroom set of new technology. The kit includes:

• A focusable lens
• Variable size eyepiece couples
• Removable mini-USB cable
• USB charger
• C-ring
• Macro-tube
• Motic calibration slide with 4 circles and cross hair
• Motic software and free apps for tablets

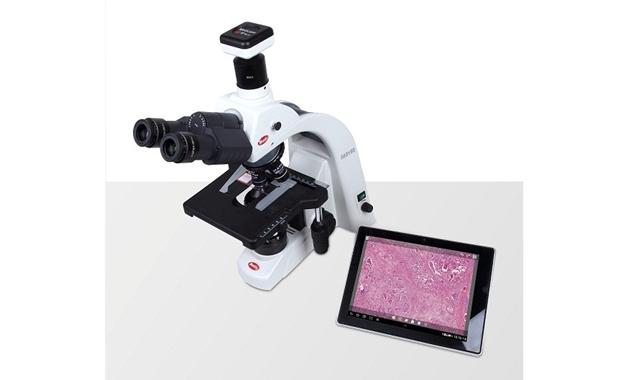

The Moticam X is a digital camera that can be used on its own for macro images or attached to the eyepiece of a microscope. Once in place, the digital camera streams high-resolution images to wifi-enabled devices such as  smart phones, tablets, and laptops. The Moticam X device can stream images to up to six different devices at the same time, which is excellent for a typical lab station sizes. The streaming image is 1.3 megapixels, which is appropriate for viewing on screen.

The procedure to set up the Moticam X is very straightforward. First, prior to attaching the Moticam X, I focused a microscope on a prepared slide. Next, I attached the Moticam X to the eyepiece of my microscope using a coupler that comes with the device. (If you prefer, you can attach the Moticam X to a goose-neck clamp and use it without the benefit of the microscope’s magnification.) Once the Moticam X was in place, I connected my iPad to the Moticam X by searching for it under the list of available wi-fi connections under the Settings tab. Once I established this connection I launched the app associated with the device and was able to view the slide on which the microscope was focused The device comes with software to help you connect to other wireless devices your students might be using. A router is not required.

Users can view live images, but can also save images to their portfolios. They can then use the apps image editing tools to modify, annotate, and share images. The app also comes with camera settings that allow users to make adjustments for lighting conditions (fluorescent, daylight, LED, etc.) and change the brightness, hue, color saturation, and other basic settings. You can also flip and mirror the image using the camera controls

Overall, I think this is a first-rate device that enhances the capabilities of a microscope and facilitates lab work. In addition, students can save images on portable devices and refer to them when completing homework and other assignments outside the classroom. The Moticam X is a reasonably priced and well-built device that enhances the applications of microscope viewing by integrating Wi-Fi applications to connect microscopes with modern technologies. Undoubtedly, this is the kind of the application that will help students use technology for learning and give them an opportunity to collaborate outside the classroom.

Specifications

Manufacturer: Swift Optical

Price: $449.00

Website: http://swiftoptical.com/products/d-moticam-x

Demonstration: https://www.youtube.com/watch?v=J38hlQAuW98

Edwin P. Christmann is a professor and chairman of the secondary education department and graduate coordinator of the mathematics and science teaching program at Slippery Rock University in Slippery Rock, Pennsylvania.
