Engaging Students in Systems Thinking and Computational Thinking Through Modeling
By Jonathan Bowers, Daniel Damelin, Emanuel Eidin, and Cynthia McIntyre
The COVID-19 crisis has demonstrated the importance of being able to understand complex computational models for everyday life. To make sense of the evolving predictive models of the COVID-19 pandemic, global citizens need to have a firm grasp of both systems thinking (ST) and computational thinking (CT).
Systems thinking is the ability to understand a problem or phenomenon as a series of interconnected elements that produce emergent behaviors (Meadows 2008; Pallant, Lee, and Pryputniewicz 2012). For example, scientists can use ST to examine how different elements of human behavior (social distancing, mask wearing, hand hygiene, etc.) impact the broader system of human interactions that determine how fast the pandemic will spread. However, given the complexity of the pandemic, ST alone is insufficient for constructing or interpreting a meaningful model. To create accurate models, scientists need to use computational thinking. CT involves decomposing a problem into quantifiable elements represented in an algorithmic form that can be interpreted or calculated by either a computer or a person (Sneider et al. 2014; Wing 2006). Such computational artifacts allow users to set different initial conditions and see a range of results and potential solutions. Additionally, refining computational artifacts via testing and debugging as new data becomes available is a hallmark of CT. Not only are ST and CT complementary and critical for constructing pandemic models, they are also essential for understanding a host of other scientific phenomena—from ecosystems to climate change and more.
Although both ST and CT have been increasingly identified as important science practices and crosscutting concepts through the Next Generation Science Standards (NGSS Lead States 2013), there remains a lack of useful learning tools to support teachers and students in ST and CT (Grover and Pea 2017). One new framework seeks to support student engagement in ST and CT by contextualizing these two types of thinking within the practice of constructing computational models (Figure 1) (Damelin, Stephens, and Shin 2019). This framework explores how various aspects of ST and CT are embedded within different modeling practices, as well as how these modeling practices can help students as they construct, revise, and use computational models. In this article, we explore how students interact with the various aspects of ST and CT as they build and refine computational models using SageModeler (a free web-based semi-quantitative system modeling application) in a chemistry unit on evaporative cooling (see Online Connections). Through the examples presented here, we illustrate ways in which this framework can inform curriculum design and pedagogical practice.
Evaporative cooling describes the phenomenon that occurs when liquids evaporate, and in the process, the temperature of the liquid and whatever it is touching decreases. This occurs because thermal energy is used to overcome the intermolecular forces attracting the molecules close together, keeping the substance in a liquid state. When the molecules spread apart forming a gas during the evaporation process, thermal energy is converted to potential energy, and the temperature decreases.
We developed a curriculum unit on evaporative cooling consisting of five investigations aligned with the disciplinary core ideas in HS-PS1 (Matter and Its Interactions) and HS-PS3 (Energy), the two science practices of developing and using models and using computational thinking, and the crosscutting concept of systems and system models specified in the Next Generation Science Standards (NGSS Lead States 2013). The investigations were designed using a project-based learning approach (Krajcik 2015; Krajcik and Shin 2014), which includes pursuing a solution to a meaningful question, exploring phenomena using scientific practices, and engaging in collaborative activities to find solutions.
Brief descriptions of all unit investigations—fashioned around the driving question “Why do I feel colder when I am wet than when I am dry?”—can be found in Table 1 (see Online Connections). While students engaged in ST and CT through modeling throughout the unit, our examples primarily come from the first two investigations as the focus of this article is to demonstrate how appropriately designed curriculum activities can support students in modeling practices using systems thinking and computational thinking.
Students begin Investigation 1 by doing a hands-on experiment, placing small amounts of various contact-safe liquids (water, rubbing alcohol, acetone, and oil) on their arms using bulb pipettes. They take notes about how each liquid feels on their skin, which liquids feel colder than others, and which liquids evaporate faster than others. In small-group discussions, students share their observations with one another. Then the teacher introduces the unit’s driving question: “Why do I feel colder when I am wet than when I am dry?” The students then participate in small-group discussions, where they reexamine the phenomenon through the lens of this driving question. After students examine the key ideas of the driving question, they are encouraged to generate additional questions of their own and post them on a Driving Question Board (DQB). The DQB activity helps students break down the larger driving question into more targeted questions that the teacher can revisit throughout the unit (Touitou et al. 2018). Through the initial experiment and the DQB activity, students start identifying macroscopic aspects of the phenomenon (type of liquid, heat of the hand, evaporation rate, etc.) and engage in the ST aspect of defining a system and the CT aspect of decomposing problems such that they are computationally solvable.
The next modeling practices—define the boundaries of the system and design and construct model structure—go hand in hand and together constitute the overarching practice of construct and revise a model. Students begin by creating model illustrations with an online drawing tool, using the ST aspect of defining a system and the CT aspect of decomposing problems as they define the boundaries of the system. Students’ illustrations and accompanying text explanations are early sensemaking representations of evaporative cooling in which they begin to consider the underlying mechanisms behind the phenomenon (Figure 2). In particular, students describe how the hand’s heat causes the liquid molecules to move faster—allowing some to evaporate—and that loss of heat makes them feel colder.
Additional classroom discourse surrounding these illustrations helps students in defining specific elements as key variables that can be modeled computationally in SageModeler, including evaporation rate and heat of liquid. By facilitating discussion around the evaporative cooling process and the key variables needed to model this process, these illustrations not only help students participate in the modeling practice of define the boundaries of the system, but also assist with the cognitive shift needed to design and construct model structure using SageModeler system modeling software (see Online Connections). Students create their initial computational models in SageModeler at the end of Investigation 1 by engaging in the ST practice of engaging in causal reasoning and recognizing interconnections and identifying feedback and the CT practice of creating artifacts using algorithmic thinking.
SageModeler takes a semi-quantitative approach to modeling. Students begin by adding variables to their workspace, using a simple drag-and-drop interface. For effective modeling, these variables must be quantifiable (i.e., able to vary on a low to high scale), and students need to convert objects (such as “hand” or “water”) into measurable variables such as “temperature of hand” or “amount of water.” Next, they set causal relationships between variables by linking them. The directionality of relationship arrows shows causality (e.g., an increase in “temperature of hand” causes an increase in “evaporation rate”), and the color of lines shows the general trend of the relationship (red indicates positive correlation, blue indicates negative correlation). Finally, students can adjust the magnitude of these causal relationships using the relationship tab.

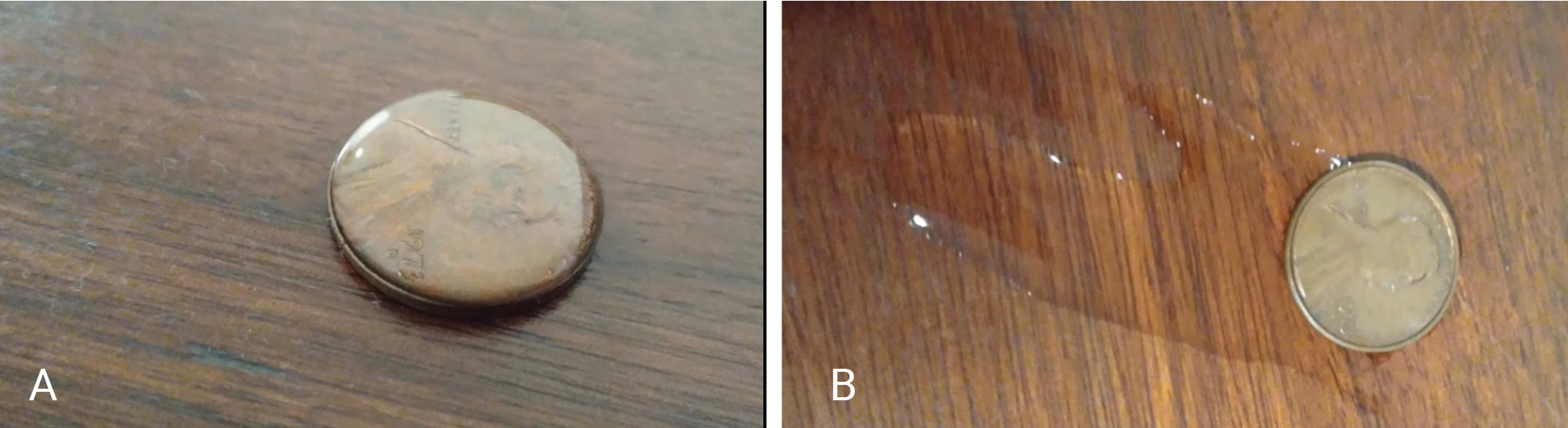

Throughout the unit, students test, evaluate, and debug model structure as they carry out additional hands-on investigations into different aspects of evaporative cooling. For example, in Investigation 2, as students explore the investigation-level question, “Why do some liquids ‘stick together’ more than others?” they are introduced to how differences in the Intermolecular Forces (IMFs) of various liquids affect their behavior. They conduct an experiment to determine how many drops of liquid (water, acetone, and rubbing alcohol) can fit on a penny. Using a pipette, they add individual drops of a liquid until the surface tension breaks, causing the “bubble” of liquid to burst (Figure 3). Students repeat this experiment three times with each liquid, comparing their results with their initial observations of evaporative cooling. They learn that the liquids that felt cooler and evaporated faster had less surface tension than the others. Such surface tension is indicative of the strength of the IMFs of the liquid particles and is a meaningful macro-level indicator of this important chemical property.
Next, students explore the relationship between the strength of attraction between particles, or IMFs, and the state of matter using an interactive simulation (Figure 4). After discussing this experiment and simulation and revisiting the Driving Question Board, students revise their models, using these additional sources of evidence to validate or refute specific components of their models and engaging in the ST aspect of framing problems in terms of behavior over time and the CT aspect of making iterative refinements.
In addition to modifying their models based on new experiences and conceptual knowledge, students use SageModeler to test and debug their models. The “simulate” function within the software allows students to generate output from their models as they adjust the amounts of each input variable to see how it impacts other variables and the model’s behavior (Figure 5A). Students can also explore specific relationships between two variables by generating graphs, and compare their graphs with both external data and their conceptual understanding. For example, a student might notice that their model incorrectly predicts that liquids with higher IMFs evaporate more quickly. They can then change their model by redefining the relationship to better reflect their experimental results (Figure 5B).
Peer critique is another essential resource for helping students improve the usefulness of their model or identify any flaws. Students meet in small groups to share and discuss their models, guided by our model design guidelines (which is also used by teachers to provide formative assessment and feedback on student models) (Figure 6). Such peer critique helps students identify aspects of their models that can be improved while also generating new ideas from examining the work of others. Through these varied approaches for supporting the modeling practice of test, evaluate, and debug model behavior, students are able to participate in the ST aspects of recognizing interconnections and feedback and engaging in causal reasoning, as well as the CT aspects of generating, organizing, and interpreting data, testing and debugging, and making iterative refinements.
At the end of the unit, students return to the Driving Question Board to address any final questions they have regarding evaporative cooling. A summative assessment task allows students to use model to explain and predict behavior of phenomenon or design solution to a problem. They write an explanation of evaporative cooling that addresses the driving question of “Why do I feel colder when I am wet than when I am dry?” using their models to scaffold their written responses (Figure 7). Students are then encouraged to reflect on the evidence used to create their models and, therefore, reflect on the whole modeling process.
When students engage in the NGSS practices of developing and using models and using computational thinking, and the crosscutting concept of systems and system models (NGSS Lead States 2013), they have opportunities to apply three-dimensional learning and make sense of scientific phenomena. This article demonstrates how a chemistry unit on evaporative cooling with an embedded system modeling tool called SageModeler can help students in the critical work of exploring and understanding complex problems. The framework for scaffolding students in ST and CT through modeling can be applied to other disciplines—including climate change, ecosystems, population dynamics, forces and motion, and many other topics—to foster student participation in systems thinking and computational thinking through modeling. In doing so, they will build skills to help them solve complex problems of the future. ■
This material is based upon work supported by the National Science Foundation under grants DRL-1842037 and DRL-1842035. Any opinions, findings, and conclusions or recommendations expressed in this material are those of the author(s) and do not necessarily reflect the views of the National Science Foundation.
Free curriculum unit: https://learn.concord.org/building-models
Connecting to the Next Generation Science Standards: https://www.nsta.org/sites/default/files/journal-articles/TST89-4/Bowers/NGSS.pdf
Jonathan Bowers (firstname.lastname@example.org) is a PhD Student and Emanuel Eidin is a Postdoctoral Researcher at Michigan State University, East Lansing, MI; Daniel Damelin is a Senior Scientist and Cynthia McIntyre is Director of Communications at The Concord Consortium, Concord, MA.
Damelin, D., L. Stephens, and N. Shin. 2019. Engaging in computational thinking through system modeling. @Concord 24 (2): 4–6.
Grover, S., and R. Pea. 2017. Computational thinking: A competency whose time has come. Computer Science Education: Perspectives on Teaching and Learning in School, 19–39.
Krajcik, J.S. 2015. Project-based science: Engaging students in three-dimensional learning. The Science Teacher 82 (1): 25–27.
Krajcik, J.S., and N. Shin. 2014. Project-based learning. In The Cambridge handbook of the learning sciences, ed. R.K. Sawyer, 275–97. 2nd ed. Cambridge: Cambridge University Press.
Meadows, D. 2008. Thinking in systems: A primer. Chelsea Green Publishing: White River Junction, VT.
NGSS Lead States. 2013. Next Generation Science Standards: For states, by states. Washington, DC: National Academies Press.
Pallant, A., H.-S. Lee, and S. Pryputniewicz. 2012. Modeling Earth’s climate. The Science Teacher 79 (7): 38–42.
Sneider, C., C. Stephenson, B. Schafer, and L. Flick. 2014. Computational thinking in high school science classrooms: Exploring the science “framework” and “NGSS.” The Science Teacher 81 (5): 53–59.
Touitou, I., S. Barry, T. Bielik, B. Schneider, and J. Krajcik. 2018. The activity summary board. The Science Teacher 85 (3): 30–35.
Wing, J.M. 2006. Computational thinking. Communications of the ACM 49 (3): 33–35.
